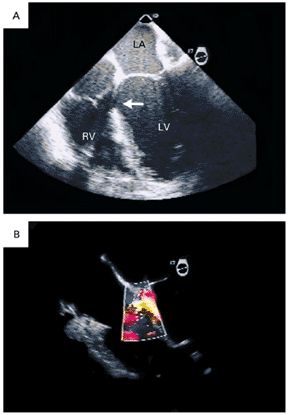

Transesophageal Four-Chamber Views in a Patient with a Ventricular Septal Rupture Complicating an Acute Posterior Myocardial Infarction.
In Panel A, the ventricular septal rupture (arrow) is basal and at the junction between the basal inferior septum and the inferoposterior wall. In Panel B, a color Doppler image shows the shunt across the ventricular septal rupture. LA denotes left atrium, LV left ventricle, and RV right ventricle.
